Two UV-LED lamps, optimized for bidirectional printing

UV lamps are placed on both sides of the print head, achieving high productivity by optimally curing ink through bidirectional printing.

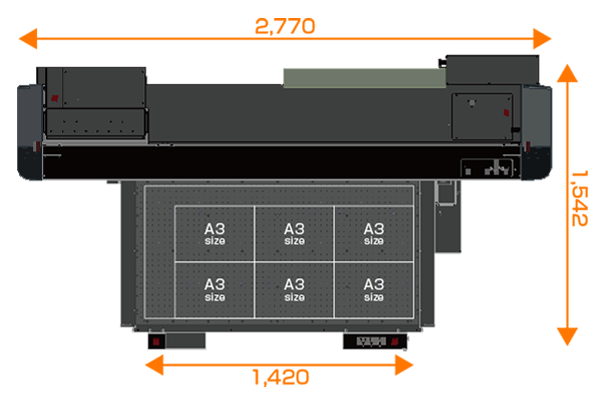

Print 6 A3 sheets in about 15 minutes on a 1,420 mm x 700 mm printing area

The unit size of this model is approximately the same as two UV printers designed for A2-size printing (2,770 mm x 1,542 mm).
The printing area (1,420 mm x 700 mm) ensures parts can be placed comfortably within operator’s reach, allowing up to six A3 sheets to be set at once. Printing takes about 15 minutes in Production mode, offering excellent productivity per unit of installation area.

DTO printing on objects up to 150 mm tall

Equipped with a laser sensor that automatically detects media thickness up to 150 mm.

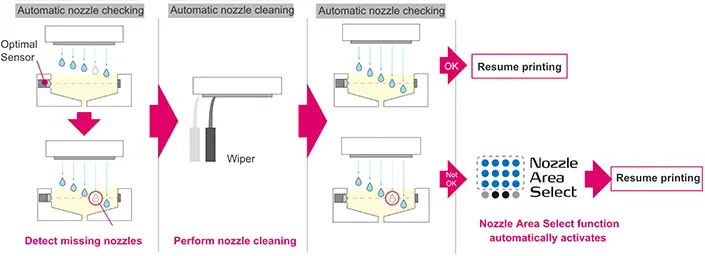

Nozzle check possible even with the jig attached to the table

Even after the jig and media to be printed are set on the table, nozzle check can be performed at any time in a dedicated area next to the print table.

Sustainable inks that take into consideration workers’ health and the safety of printed products

US61 and UH71 inks are compliant with the EU REACH regulations and are highly safe inks that do not contain SVHC (Substances of Very High Concern) or substances classified as CMR category 1A or 1B.

*As of October 2025

US61 ink characteristics

• Excellent acrylic adhesion
• Excellent stretchability and abrasion resistance
• Compatible with a variety of media
• Reduced stickiness after curing
• Highly opaque white ink
• GREENGUARD Gold certified

UH71 ink characteristics

• Excellent durability (a hard, durable finish after curing; abrasion resistant)
• High chemical resistance
• Low odor
