UV-LED INK
The latest multi-nozzle, large-format print head and a large 4-inch UV lamp improve the accuracy and build quality of raised printing.
Layer printing, which stacks two layers in a single pass, also enhances the expressive capabilities of Braille and texture printing.

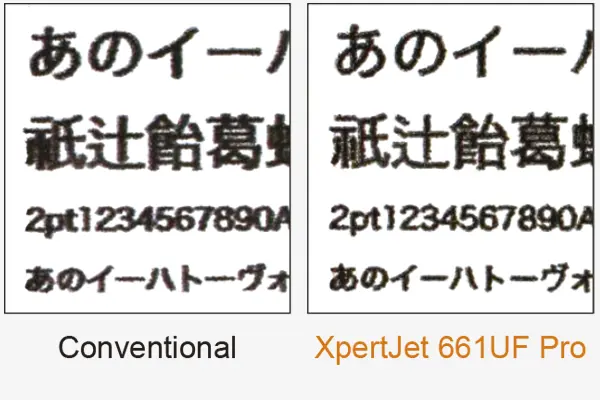

The latest print head AccuFine HD Pro delivers round dots, and the highly rigid chassis, made of steel and aluminum sheet metal (resin-molded parts eliminated), suppresses vibration during printing for fine, precise output.

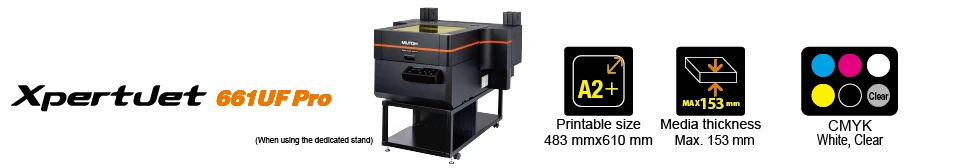

Supports a maximum print size of 483 x 610 mm, media heights of up to 153 mm, and a maximum weight of 8.0 kg (jigs included).
A single machine handles a wide range of applications, from various merchandise and industrial products to small signage.
A newly designed maintenance jig improves the ease of cleaning around the print head. The left and right maintenance covers open in a new direction, improving access to the print head and UV-LED lamp surface.
This RIP software boasts high image quality thanks to MUTOH’s proprietary technology MUTOH Clear Tone, a preview function that reduces printing errors, and a printing environment (preset function) that streamlines workflow.
Check printer status in real time.
View Details
This software monitors the status of a printer on a PC connected to the printer via a network.
| Model | XPJ-661UF-P | |
|---|---|---|
| Print head | Print method | On-demand piezo drive system |
| Height adjustment | Automatic adjustment (manual adjustment also possible) | |
| Media | Usable size (WxD) | Maximum: 493 mm x 620 mm |
| Max. thickness | 153 mm or less | |
| Weight | 8.0 kg or less (incl. jig) | |
| Maximum printable size (WxD) | 483 mm x 610 mm | |
| Ink | Type | UV-LED ink UH21 *Support for UH71 and US61 is planned to be added gradually. |
| Colors | 6 colors (C, M, Y, K, Wh, Clear) | |
| Capacity | 220 ml cartridge 800 ml ink bag 500 ml ink bag (UH21 White only) |
|
| Interface | Gb-Ethernet (1000BASE-T) | |
| Power supply | AC 100–240 V ±10 %, Frequency: 50/60 Hz ±1 Hz | |
| Print environment | Printer operation | Temperature: 20–32 ℃, Humidity: 40–60 % RH (no condensation) |
| Accuracy guaranteed | Temperature: 22–30 ℃, Humidity: 40–60 % RH (no condensation) | |
| Power consumption | Operation | 310 W or less |
| Ready to print | 49.0 W or less | |
| Dimensions (WxDxH) | W1,230 mm x D1,656 mm x H632 mm (H1,107 mm with stand) | |
| Weight | Printer body: 172 kg Stand (optional): 43 kg |
|
| RIP software | Genuine RIP software VerteLith | |
| Product name | Model | Details |
|---|---|---|
| VerteLith | IJ-RIP-01 | MUTOH Genuine RIP software |
| Stand | IJ-STD-01 | For XPJ-661UF-P, reinforced type |
| Stand (Previous model) | VJ626-STD-01 | Previous XPJ-661UF model |
| Rotary unit | IJ-RTU-04 | |
| High capacity ink pack adapter for UV curable ink (with choke valve for UV) |
IJ-HCIPADPT-UV6 | 6 pieces/box |
| High capacity ink pack adapter for UV curable ink |
VJ-HCIPADPT-UV6 | 6 pieces/box Without choke valve |
| Product name | Model | Details | |
|---|---|---|---|
| UH21 ink (Hard type) |
UH21-CY220U | Cyan | 220 ml cartridge |
| UH21-MA220U | Magenta | ||
| UH21-YE220U | Yellow | ||
| UH21-BK220U | Black | ||
| UH21-VA220U | Clear (Varnish) | ||
| UH21-WH220U | White | ||
| UH21-CY800U | Cyan | 800 ml ink bag | |
| UH21-MA800U | Magenta | ||
| UH21-YE800U | Yellow | ||
| UH21-BK800U | Black | ||
| UH21-VA800U | Clear (Varnish) | ||
| UH21-WH500U | White | 500 ml ink bag | |
| Cleaner | UH22-CL220U | Cleaner | 220 ml cartridge |
| Maintenance Cleaner | VJ-ULVA1-ML500U | Maintenance cleaning solution | 500 ml bottle |
| Flushing pad | VJ1608-FB-SO20 | 20 pieces/box | |
| Cleaning stick | RH2 Clean Stick | 100 pieces/box | |
| Replaceable wiper set | IJ-RWIP-03 | 2 pieces/box | |
| UV-LED emitting window glass | IJ-UVGLS-03 | 1 piece/box | |
| UV-LED filter | IJ-UVFLT-03 | 10 pieces/box | |
| Lubricating grease for table maintenance | VJ-626-GREASE | ||
| Dropper | DROPPER 6 PACK SET | 6 pieces/box | |
| Rail cleaner kit | IJ-RLCLNK-01 | 1 set | |
| IJ adapter plug | IJ-HCIPAR | 20 pieces/box | |
| Waste ink tank | IJ-WFBS-02 | 1 piece | |
