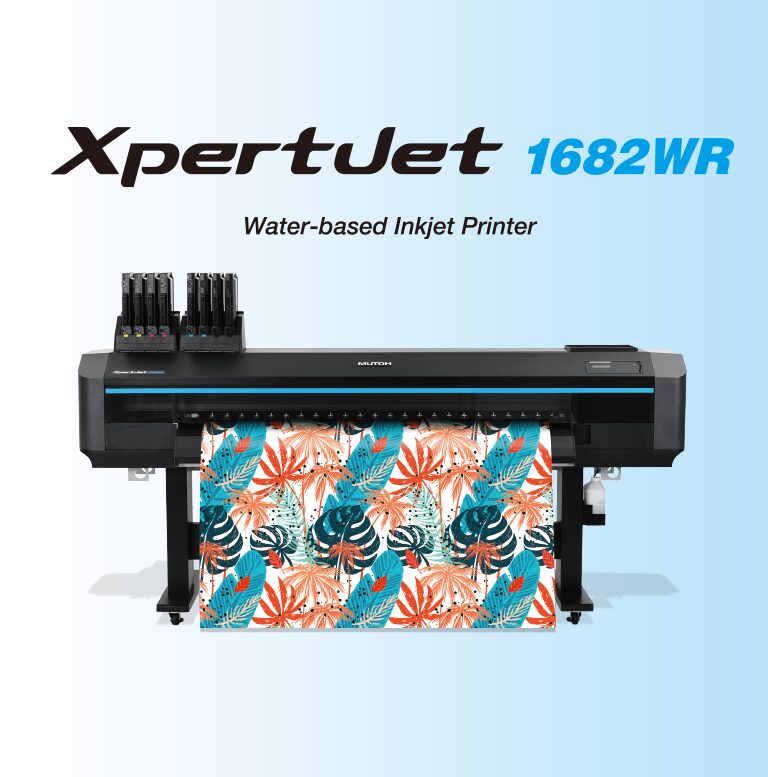

XpertJet 1682WR

Water Based

The 1625 mm /64” Wide High Speed Water-based Inkjet Printer enhanced a wide range of media handling and stable transport

The dual head XpertJet 1682WR (1625mm-64”) is a high speed water-based inkjet printer with a new platform that inherits the properties of XpertJet series. The XPJ-1682WR provides improved usability and reduce operational workload which will ensure high-quality prints, high productivity outputs and user-friendly operation. Newly developed “Multi-stage pressurizing system” enhances media feed stability for a wide range of media.
The MUTOH original dye-sublimation transfer ink (DH21) provides optimum print quality and wide color gamut. The DH21 ink is available in a 4-color configuration CMYK and 7-color (CMYK, LC, LM, LK). Large capacity ink bags (1,000ml or 2,200ml) with the original ink cases support prolonged continuous printing.
The XPJ-1682WR delivers high quality graphics onto a wide range of materials such as trade show graphics, flags, banners, custom interior designs, apparel, sports uniforms and more.
The XPJ-1682WR brings the best “Made in Japan Quality” to the various markets.

Smart Printing Technologies:

Specifications

Model Name XPJ-1682WR
Print Technology Drop-on-demand Micro Piezo Inkjet Technology
Print Head 2 (staggered setup)
Head Heights Low:1.5mm / Middle:2.5mm / High: 4.0mm
Media Width Maximum 1625mm Minimum 500mm
Thickness 0.3mm (the head height is set to Low) 1.3mm (the head height is set to Mid) 2.8mm (the head height is set to High)
Mesurement Ø 150 mm / 2” & 3” / 30 kg or less
Maximum Printable Width 1615mm
Maximum Print Length 1500mm
Ink Type Water-based dye sublimation ink
Ink set 4-color (Black, Cyan, Magenta, Yellow)
7-color (Black, Cyan, Magenta, Yellow, Light Cyan, Light Magenta, Light Black)
Volume 1000ml/2200ml ink bag
No. of slot 8
Maximum Print Resolution 1440 x 1440dpi
Interface Gb-Ethernet (1000BASE-T)
Power Requirements Voltage: AC 100V~120V ±10% / AC 200V~240V ±10% Frequency: 50/60Hz ±1Hz
Noise Printing: 70.4 dB Standby: 64.2 dB
Printable Environment Printer Operation Temperature: 20℃~32℃ Humidity: 40%~60% No condensing
Accuracy Guaranteed Temperature: 22℃~30℃ Humidity: 40%~60% No condensiing
Printer Dimensions (WxDxH) Main body:2770mmx895mmx1428mm(cover closed), /(when installing ink bag cases:1611mm
Printer Weight Main body: 141kg Stand: 32kg
Optional Take-up Unit Supported media weight up to 30kg
Take-up Unit Supported media weight up to 40kg
Take-up Unit Supported media weight up to 100kg/220lbs
Roll Media Flange Torque:1kgf.cm 1 piece/box
Roll Media Flange_High Torque Torque:4kgf.cm 1 piece/box
2200ml Ink Bag Case Supported ink bag: 1000ml/2200ml 4 cases/box
1000ml Ink Bag Case Supported ink bag: 1000ml 4 cases/box
Cutter Blade Replacement cutter blade
  • The specifications are subject to change without notice.
