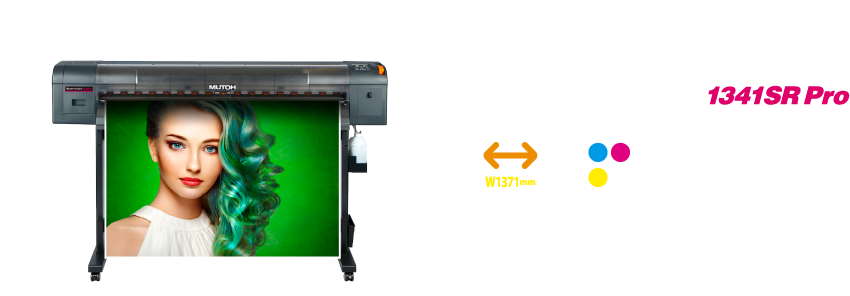

XpertJet 1341SR Pro

High productivity and print quality
Remarkable cost performance

The MUTOH XpertJet series, which delivers excellent print quality and high productivity, now has a 54"/1.3m wide eco solvent printer perfectly balancing cost and performance. In a compact body that's easy to handle, equipped with MUTOH's latest unique technologies. The XpertJet 1341SR Pro is paired with MUTOH's new eco solvent ink "VJ-MS31" that excels in color reproduction, weather resistance, and ease of maintenance. The ink has been certified UL GREENGUARD Gold, making it environmentally and also operator friendly.
The XpertJet 1341SR Pro brings the best "Made in Japan Quality" to various markets such as banners, trade show graphics, indoor and out door signs, POP displays, vehicle wrap and more.

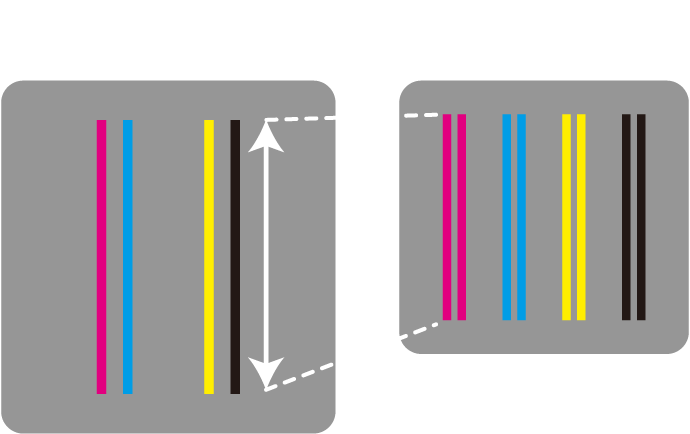

MUTOH's new print head "AccuFine" on board

The “AccuFine” is wider and delivers higher density with more accuracy than conventional print heads achieving both high-speed printing and excellent image quality. Even at high speed, the “AccuFine” can produce high-quality solid printing with less banding.

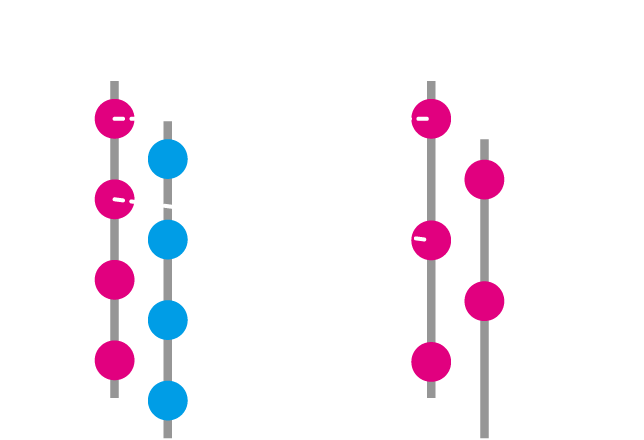

Increased nozzle row length

Contributes to higher productivity

High density nozzle pitch

Contributes to higher image quality

*This is different from the actual ink arrangement.

◆Productivity comparison with conventional printer

It achieves more than 200% productivity over conventional model in the same level of image quality.

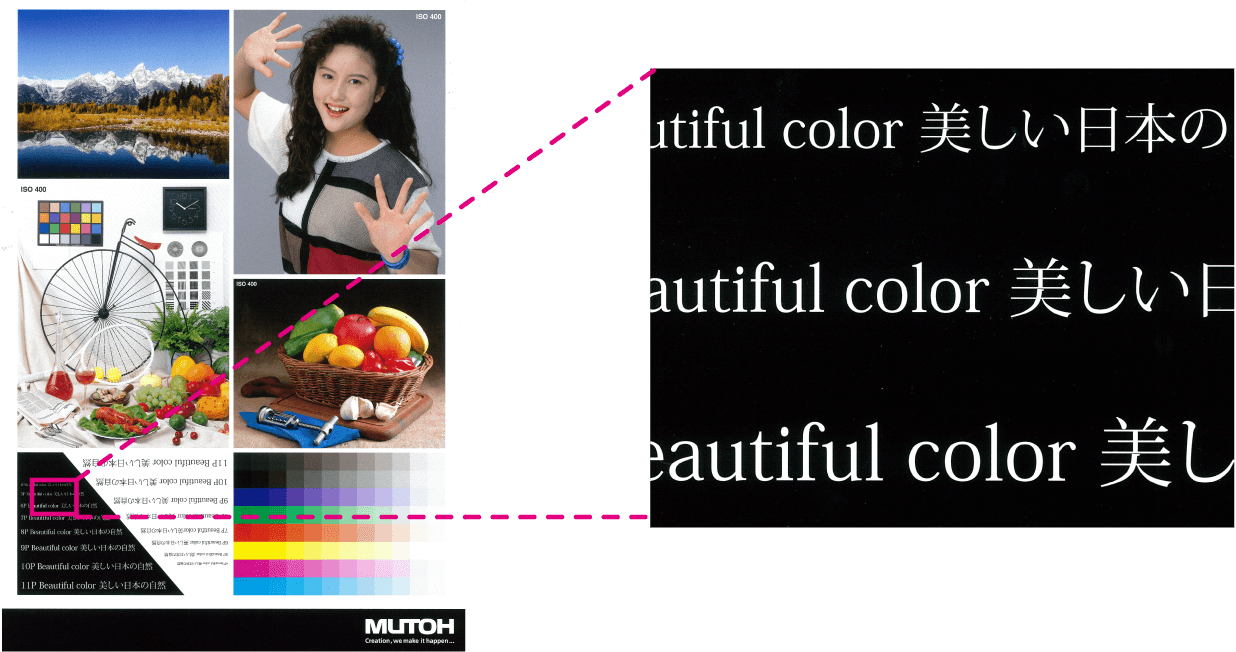

◆Precise ink dot placement

It achieves high image quality thanks to extremely precise ink dot placement.

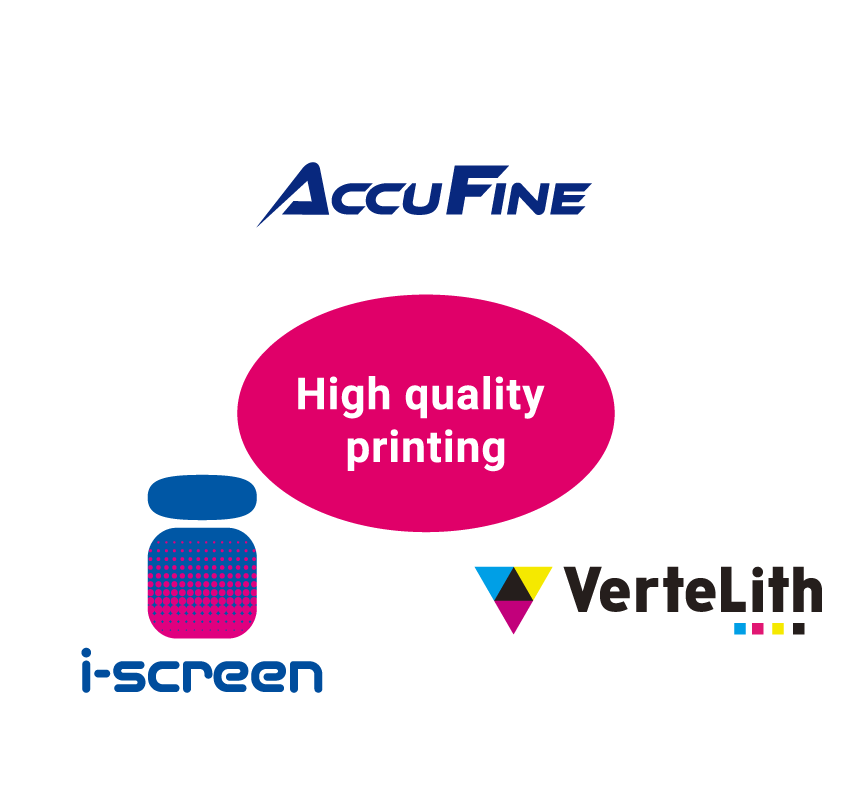

The integration of
three features enables
high quality printing.

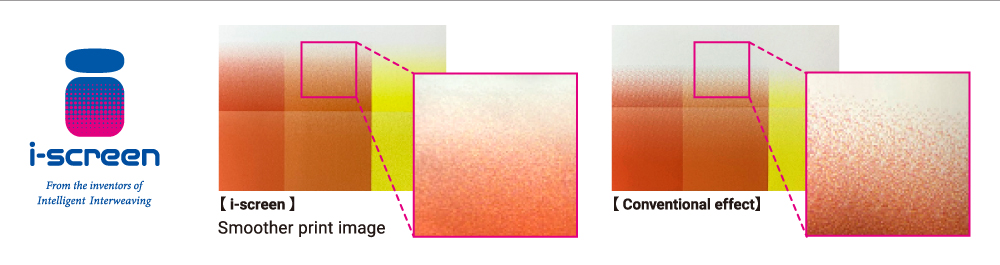

New print effect "i-screen"

The new print effect “i-screen” created from MUTOH’s "Intelligent Interweave" printing technology, optimizes the new print head "AccuFine". By arranging the dots in a way that takes into account how they look, this reduces banding for smoother print images.

MUTOH's genuine RIP software "VerteLith" optimizes
the performance of the XpertJet 1341SR Pro.

MUTOH Clear Tone
Original half tone technology

Less variation in color density and smoother gradations

MUTOH CMYK
Wide color gamut profile

ICC input profile "MUTOH CMYK" maximizes the coverage of color gamut

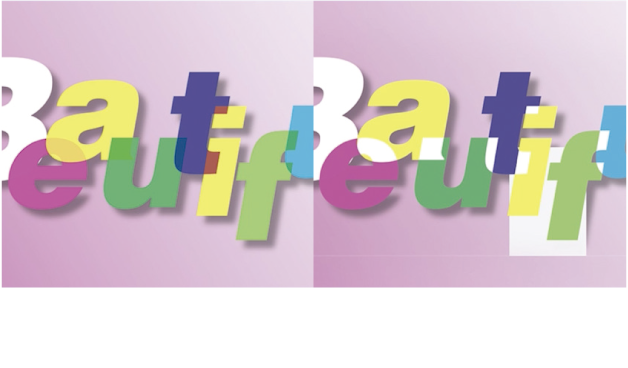

Accurately process PDF
transparencies

More reliable output by accurate processing of PDF transparencies & drop shadows

MUTOH's unique technologies for automation and efficiency

Automatic Bi-D adjustment
"DropMaster 2"

A built-in sensor on the carriage
automatically calibrates bi-directional
alignments, and saves time and reduces
validation in adjustment among different
operators.

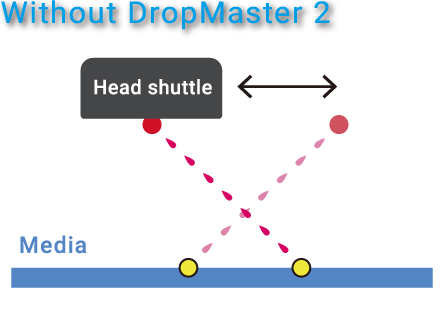

Without DropMaster 2

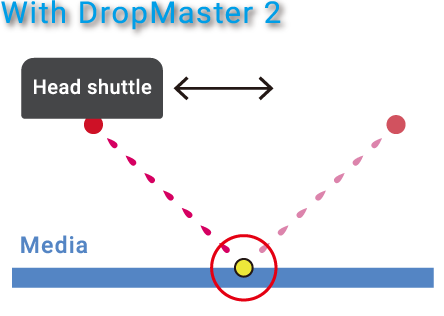

With DropMaster 2

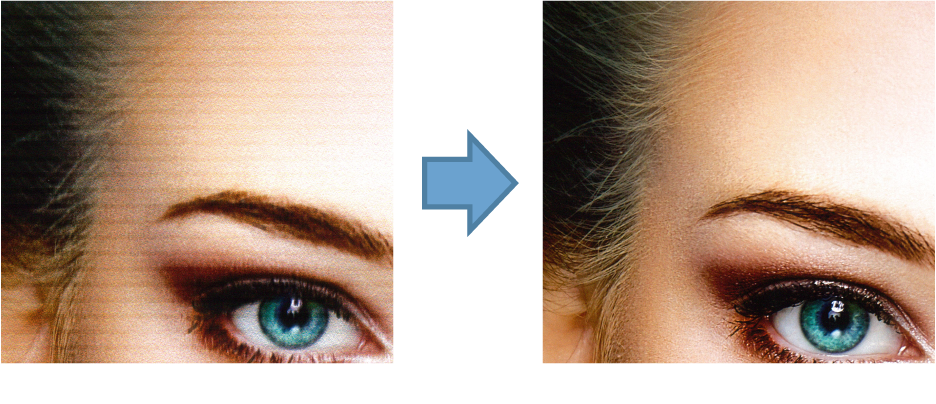

Automatic media feed adjustment
"FEED MASTER"

By printing a print pattern and reading it with a sensor, paper feed correction is performed automatically. This reduces the time and effort required for adjustment and media loss.

Nozzle selection Function
"Nozzle Area Select"

Nozzle area select temporarily prints using selected areas of active nozzles when clogged nozzles fail to recover. This is a reliable function that ensures seamless operation.

Media roll balance management
"Media Tracker"

Media tracker manages the remaining
media by printing barcodes before
removing a roll in use.It will read the
barcode when reloading that roll.
Streamlines management of
remaining capacity for multiple media.

High media compatibility

Three head height settings

The optimal print head height can be selected from 3 stages depending on the media being used. This reduces the risk of contact, and also provides stable print quality.

High 2.5mm
Middle 2.0mm
Low 1.5mm

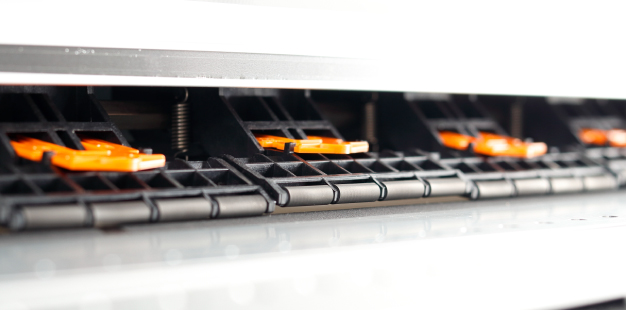

Partial pressure cancel mechanism

To prevent cockling, the pressure rollers can be individually canceled to finely adjust the pressure applied to the media. A wide range of media types can be fed under optimal conditions.

Media feeding and take-up units

The motorized feeding and take-up devices are indispensable for large-volume output and long output. The MUTOH tension bar system is used in combination with a take-up unit and a media holder for feed, to ensure constant tension and stable image quality.

Take-up unit
Media holder

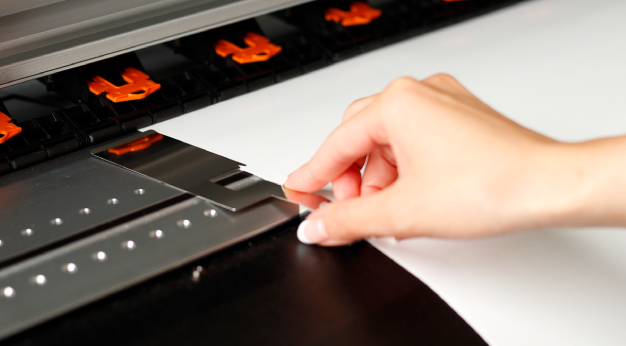

Edge holder

The edge holder, which prevents media from floating and shifting, achieves stable media transport. The magnetic system allows for easy installation and removal.

Enhanced maintenance

Improves daily maintenance and work efficiency

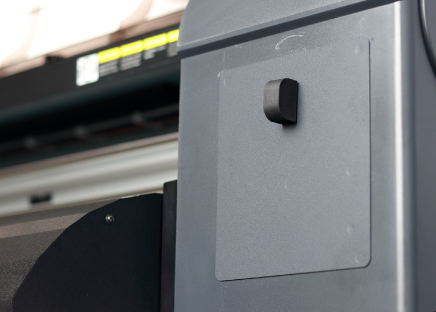

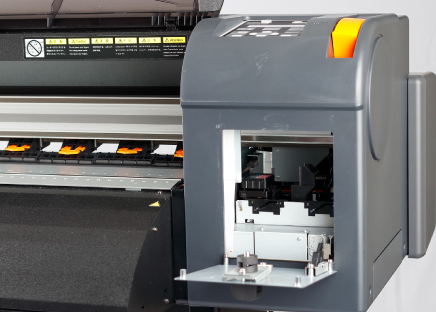

A maintenance door is provided on the standby side of the print head, which makes it easy to remove ink stains and dust on caps and wipers.

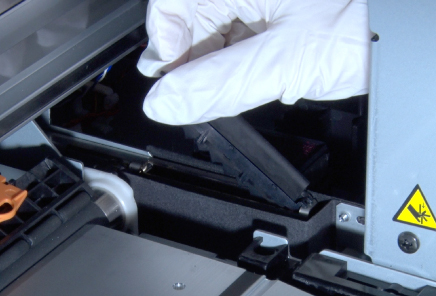

The cleaning wiper can be replaced by the customer as needed to reduce downtime.

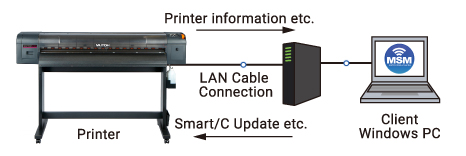

MUTOH Status Monitor(MSM)

A light-weight software enabling remote control of the printer from a computer

In the Status Monitor, the following information can be checked for the MUTOH printer.

■ Detailed information 
■ Status information
■ Heater information
■ Head temperature/cartridge information
■ S/C card information 
■ Paper information 
■ Print information 
■ Print history, etc.
・Multi-language support for all functions (10 languages)
・Print history can be exported as a CSV file.
