XpertJet 661UF

UV-LED INK

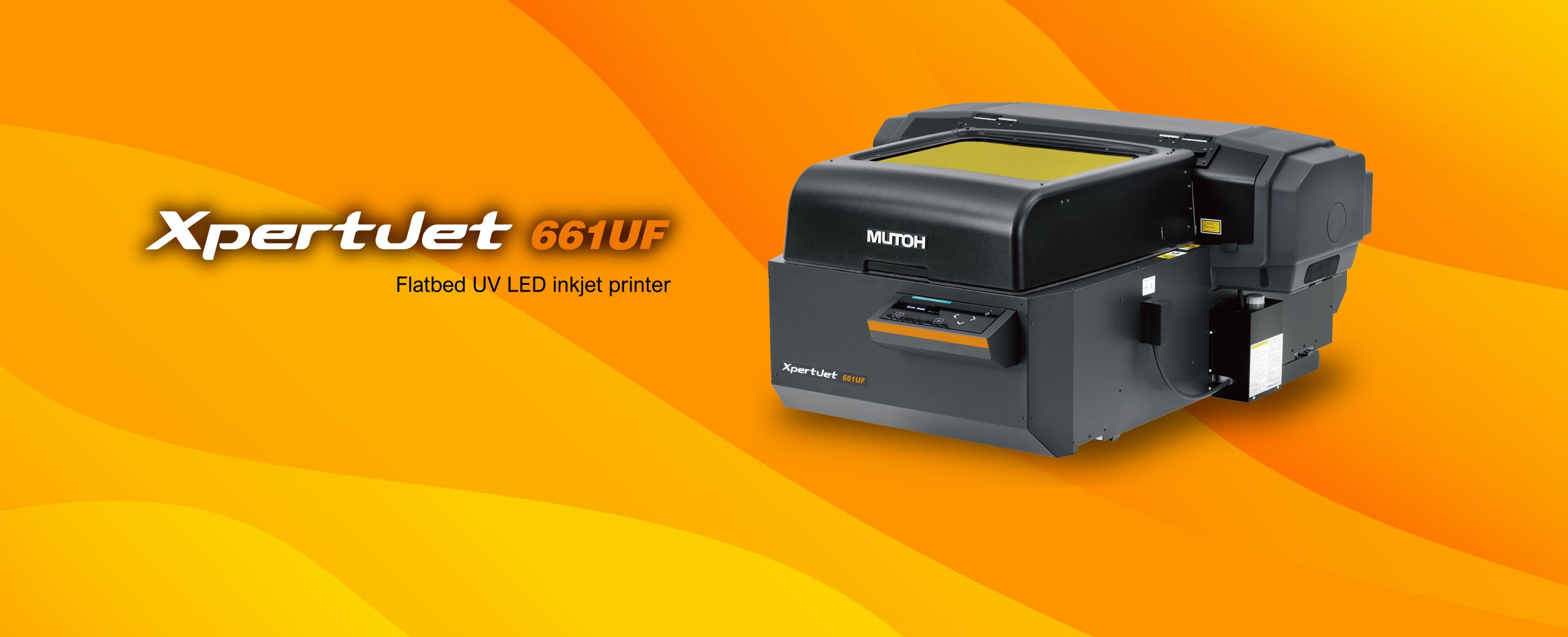

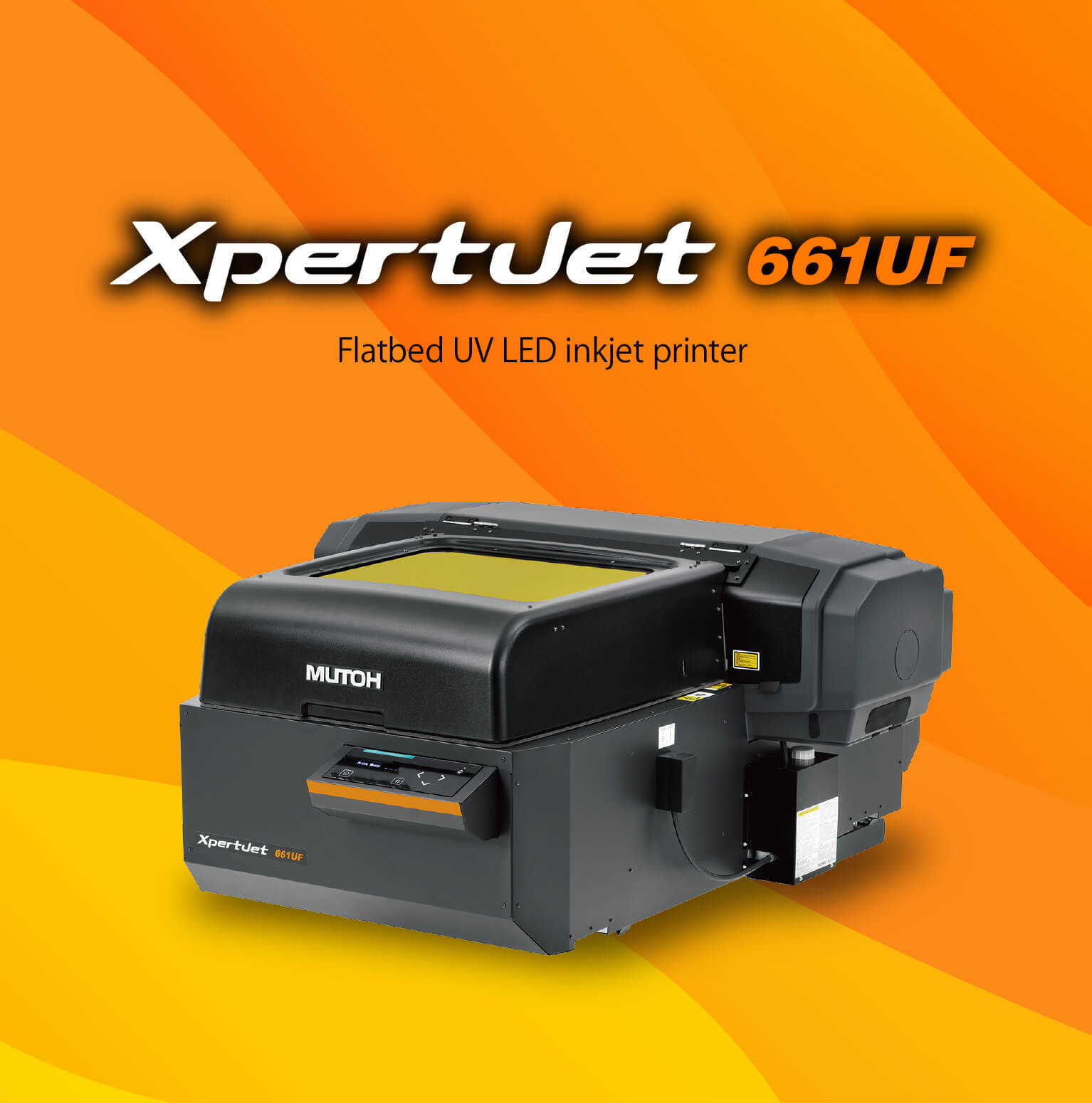

A2+ size flatbed UV LED printer designed with ease of use and high-quality texture reproduction in mind

A2+ size flatbed UV LED printer designed with ease of use and high-quality texture reproduction in mind
A2+ size flatbed UV LED printer designed with ease of use and high-quality texture reproduction in mind
A2+ size flatbed UV LED printer designed with ease of use and high-quality texture reproduction in mind
A2+ size flatbed UV LED printer designed with ease of use and high-quality texture reproduction in mind
A2+ size flatbed UV LED printer designed with ease of use and high-quality texture reproduction in mind
A2+ size flatbed UV LED printer designed with ease of use and high-quality texture reproduction in mind
A2+ size flatbed UV LED printer designed with ease of use and high-quality texture reproduction in mind
A2+ size flatbed UV LED printer designed with ease of use and high-quality texture reproduction in mind
A2+ size flatbed UV LED printer designed with ease of use and high-quality texture reproduction in mind
A2+ size flatbed UV LED printer designed with ease of use and high-quality texture reproduction in mind
Superior ink adhesion for laser cutting!

Superior ink adhesion for laser cutting!

  • With its high adhesion, the ink won’t peel off even without a primer, making it ideal for printing on acrylic goods without leaving borders!*
  • Hard ink type (UH21) and soft ink type (US11) inks are available to suit your needs.
  • *Compatibility with all media cannot be guaranteed. Please perform testing in advance.
Unique UV lamp local dimming technology realizes a wide range of texture expression!

Unique UV lamp local dimming technology realizes a wide range of texture expression!

  • Achieve both gloss and matte finishes by controlling the UV lamp.
  • Thick-layer printing is possible with less overlapping.
  • Three layers of white, color, and gloss can be printed with a single table operation, reducing the risk of dust adhesion, overprint misalignment, banding, etc.

Local dimming control is MUTOH’s patented technology which divides the UV LED lamp’s irradiation area into small cells, each of which can be controlled independently, allowing for texture adjustment.

Handle complex tasks efficiently with MUTOH’s genuine RIP software VerteLith!

Handle complex tasks efficiently with MUTOH’s genuine RIP software VerteLith!

  • Complex settings such as layer printing and layout can be preset, allowing you to perform repetitive tasks efficiently!
  • Even value-added applications such as lenticular and texture printing can be easily achieved through simple operation by loading preset (printing environment) files.
  • *The configured preset (printing environment) files and data preparation files can be downloaded from MUTOH Club, a website exclusive to MUTOH printer users.
Rotary unit that allows printing directly onto cylindrical objects (optional)

Rotary unit that allows printing directly onto cylindrical objects (optional)

An optional rotary unit is available for direct printing onto cylindrical objects such as water bottles. It can be easily attached and detached, expanding your range of applications.

Automatic table lifting

Automatic table lifting

Equipped with a sensor that recognizes media height and automatically lifts/lowers the table by up to 150 mm, which reduces the burden on the operator when loading media.

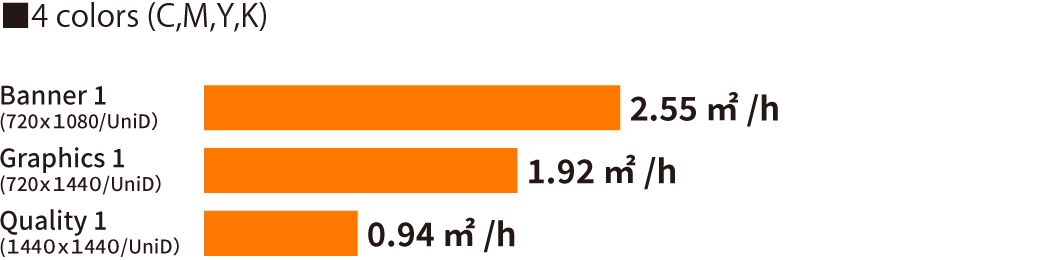

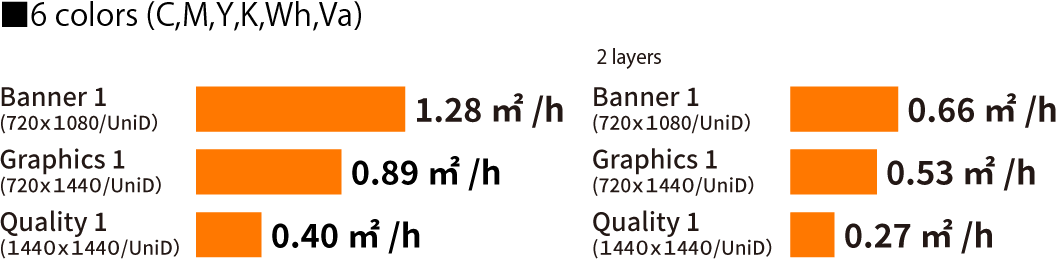

Productivity

productivity graph
productivity graph

Software

MUTOH Genuine RIP software VerteLith (option)

MUTOH Genuine RIP software VerteLith (option)

This RIP software boasts high image quality thanks to MUTOH’s proprietary technology MUTOH Clear Tone, a preview function that reduces printing errors, and a printing environment (preset function) that streamlines workflow.

MSM(MUTOH Status Monitor)

MSM(MUTOH Status Monitor)

Check printer status in real time.

Product specifications

XpertJet-461U
Printer model XPJ-661UF
Print head Print method On-demand piezo drive system
Height Automatic adjustment
Number 1
Media Usable size Maximum: 483 mm × 594 mm
Max. thickness 150 mm
Weight 6 kg or less
Maximum printable width 483 mm × 594 mm
Ink Type UV-LED ink (US11 ink / UH21 ink)
Color 4 colors (C, M, Y, K) / 6 colors (C, M, Y, K, Wh, Va)
Capacity 220 ml cartridge
Interface Gb-Ethernet (1000BASE-T)
Power supply Voltage: AC 100–120 V ±10% / AC 200–240 V ±10%
Frequency: 50/60 Hz ±1 Hz
Print environment Printer operation Temperature: 20–32 ℃ / Humidity: 40–60% RH, no condensation
Accuracy guaranteed Temperature: 22–30 ℃ / Humidity: 40–60% RH, no condensation
Power consumption Operation: 300 W or less, Ready to print: 40 W or less
Dimensions (W×D×H) Front cover closed: 1,188 mm × 1,627 mm × 604 mm
Front cover open: 1,188 mm × 1,627 mm × 1,196 mm
Weight 130 kg
RIP software Genuine RIP software VerteLith
  • *Specifications are subject to change without notice.
  • *RIP software is optional and the printer driver is included.
  • *Ink adhesion will vary depending on media type and brand. Individual testing is required.
  • *Because white ink settles at the bottom of the cartridge, please be sure to shake it lightly once a day before use.

Optional items

Product name Model Details
VerteLith IJ-RIP-01 Genuine PIP software
XPJ-661UF dedicated stand VJ626-STD-01
Rotary unit IJ-RTU-02 For printing on cylindrical objects

Supplied items

Product name Model Details
US11 ink US11-CY220U Cyan (CY) 220 ml cartridge
US11-MA220U Magenta (MA)
US11-YE220U Yellow (YE)
US11-BK220U Black (BL)
US11-WH220U White (WH)
US11-VA220U Varnish (VA)
UH21 ink UH21-CY220U Cyan (CY), 220 ml cartridge
UH21-MA220U Magenta (MA)
UH21-YE220U Yellow (YE)
UH21-BK220U Black (BL)
UH21-WH220U White (WH)
UH21-VA220U Varnish (VA)
Cleaner UH22-CL220U Cleaner, 220 ml cartridge
Supply J1608-FB-SO20 Flushing pad 20 pieces
RH2 Clean stick Cleaning stick 100 pieces
VJ-ULVA1-ML500U Maintenance cleaner Bottle
VJ-WIP Replaceable wiper 2 sets
IJ-UVGLS-01 UV-LED lamp glass
IJ-UVFLT-01 UV-LED lamp filter 5 pieces
VJ-626-GREASE Lubricating grease for table maintenance
DROPPER 6 PACK SET Dropper 6 Pack Set 6 pieces
IJ-RLCLNK-01 Rail cleaner kit
  • *Please purchase inks and cleaner separately.
  • *UV-LED inks (US11/UH21) cannot be used in combination.
  • ・Choose between 4 and 6 colors prior to the installation. The configuration cannot be changed afterwards.
  • *Prepare 6 cartridges in total. For 4-color configuration: CM x 2 + YK x 1 and for 6-color configuration: one for CMYK, White, and Varnish each.
  • ・Prepare 6 cleaning liquids at the time of delivery. Used for setup.
