ECO-SOLVENT INK

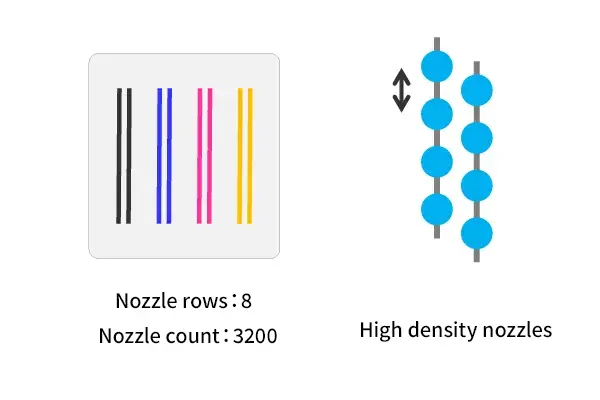

Same-color nozzles are arranged in adjacent rows to improve ink landing accuracy of each color, resulting in high image quality

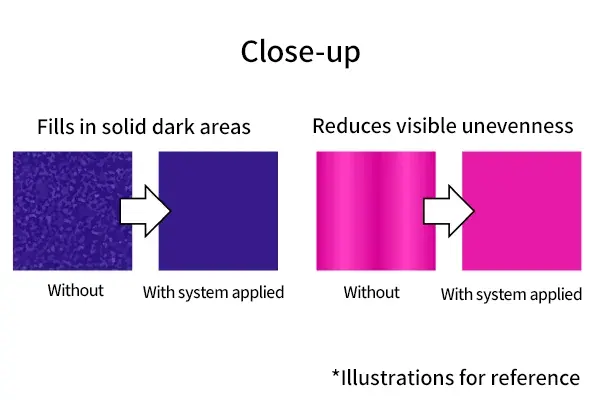

By controlling the screen, you can improve the unevenness of solid dark areas and reduce unevenness.
*When using a Mac/Linux RIP, a separate PC running Windows 11 (Intel CPU) is required to operate this system.
Temporarily prints using selected areas of active nozzles when clogged nozzles fail to recover.
View details
Nozzle Area Select is a safety function that ensures uninterrupted operation.
When nozzles are missing, printing can be performed temporarily using only active nozzle blocks by automatically selecting one of the 6 available function modes, allowing you to continue operation with minimal printer downtime.
Print a nozzle check pattern, exam available nozzle blocks, and select a suitable mode. (6 modes available)
Continue printing using only available nozzles. Printing efficiency drops to approx. 50-60%, but you can continue operation without replacing the print head.
Manages the remaining media with barcodes, enabling efficient media consumption and usage.
View details
When removing media, a barcode is printed on the end of it to record the remaining media amount.
When reloading, the barcode is read by the sensor, and the remaining capacity is recognized, which prevents media from running out during printing and reduces waste.
Media information is also printed in text, allowing you to check it yourself by reading it without having to scan
Automatically adjusts ink landing position during bidirectional printing to achieve sharp, high-quality printing
View details
This function automates the bidirectional adjustment process (which previously required visual inspection and manual input) by printing a pattern and scanning it with a sensor.
This not only lessens the amount of work required from the operator but also saves time and reduces variation in adjustment among operators, ensuring the same results across different jobs.
If the ink landing position is not aligned in both directions, both letters and images will visually double up.
The sensor reads the data and automatically applies corrections
The ink landing position is automatically adjusted, making letters and images appear clear
Automatically corrects the media feed by printing a pattern and reading it with a sensor
View details
Previously, media feed correction was done with a ruler and manually entering data. This functions automates this process by printing a pattern and reading it with a sensor.
This not only lessens the amount of work required from the operator but also saves time and reduces variation in adjustment among operators, ensuring the same results across different jobs.
If the media feed amount is
incorrect, white or black lines may
appear in the printed image
Automatically calculates and
reflects feed correction
Beautiful clear image
This RIP software boasts high image quality thanks to MUTOH’s proprietary technology MUTOH Clear Tone, a preview function that reduces printing errors, and a printing environment (preset function) that streamlines workflow.
Check printer status in real time.
View Details
This software monitors the status of a printer on a PC connected to the printer via a network.
| Printer model | XPJ-1641SR-P2 | |
|---|---|---|
| Print head | Print method | On-demand piezo drive system |
| Height | Low1: 1.5 mm, Low2: 2.0 mm, Middle: 2.5 mm, High: 4.0 mm | |
| Number | 1 | |
| Media | Roll media width | Maximum: 1,625 mm Minimum: 500 mm |
| Max. thickness | Low: 0.3 mm, Low2: 0.8 mm, Middle: 1.3 mm, High: 2.8 mm *Recommended 1 mm or less | |
| Diameter | Ø200 mm or less | |
| Weight | 30 kg or less | |
| Core diameter | 2 or 3 inches | |
| Maximum printable width | 1,615 mm | |
| Ink | Type | Eco-solvent ink (MS41 ink) |
| Color | 4 colors (C, M, Y, K) | |
| Capacity | 1000 ml ink bag | |
| Interface | Gb-Ethernet (1000BASE-T) | |
| Power supply | Voltage: AC 100–120 V ±10 % / AC 200–240 V ±10 % Frequency: 50/60 Hz ±1 Hz | |
| Print environment | Printer operation | Temperature: 20–32 ℃ Humidity: 40–60 % no condensation |
| Accuracy guaranteed | Temperature: 22–30 ℃ Humidity: 40–60 % no condensation | |
| Power consumption | Operation: Main 1,100 W or less, Heater 1,200 W or less, Sleep mode: 45 W or less | |
| Dimensions (W×D×H) | 2,770 mm x 895 mm x 1,428 mm (cover open) / 1,527 mm (cover closed), with ink case installed: 1,611 mm | |
| Weight | 173 kg (Printer body: 141 kg, Stand: 32 kg) | |
| RIP software | Genuine RIP software VerteLith | |
| Product name | Model | Details | |
|---|---|---|---|
| Option | INKCASE-1000 | 1000 ml ink case | 4 pieces/box |
| VJ16/19-TUP40U | Take up unit | For media up to 40 kg | |
| IJ-TUP100-01 | Take up unit | For media up to 100 kg | |
| MEDIA-FLANGE | Roll media flange | Torque: 1 kgf･cm (on both sides) | |
| MEDIA-FLANGE-H | Roll media flange high torque | Torque: 4 kgf･cm (on both sides) | |
| IJ-NZMD-01 | Nozzle check unit | ||
| Product name | Model | Details | |
|---|---|---|---|
| MS41 ink | MS41-CY1000U | Cyan (CY) | 1 L ink bag |
| MS41-MA1000U | Magenta (MA) | ||
| MS41-YE1000U | Yellow (YE) | ||
| MS41-BK1000U | Black (BL) | ||
| MS41-CL300U | Cleaner | 300 ml ink bag | |
| VJ-ULVA1-ML500U | Maintenance cleaner | 500 ml bottle | |
| VJ-CB | Cutter blade | 1 piece | |
| RH2 Clean stick | Cleaning stick | 100 pieces | |
| POLYNITWポリニット2 | Polynit wiper | 300 pieces | |
| IJ-RWPS-01 | Replaceable wiper set | 2 pieces | |
| IJ-RWPSH-01 | Replaceable wiper set H | 2 pieces (for PG high) | |
| DROPPER 6 PACK SET | Dropper 6 pack set | ||
| IJ-FLABS-02 | Flushing pad | 3 pieces | |
| IJ-RLCLNK-01 | Rail cleaner kit | ||
