武藤工業株式会社

ValueJet 628MP

MP INK

Stunning prints that bring out the original texture of various materials

色々な素材に、風合いを活かした、美しいプリントを実現
色々な素材に、風合いを活かした、美しいプリントを実現
色々な素材に、風合いを活かした、美しいプリントを実現
色々な素材に、風合いを活かした、美しいプリントを実現
色々な素材に、風合いを活かした、美しいプリントを実現
色々な素材に、風合いを活かした、美しいプリントを実現
色々な素材に、風合いを活かした、美しいプリントを実現
色々な素材に、風合いを活かした、美しいプリントを実現
色々な素材に、風合いを活かした、美しいプリントを実現
色々な素材に、風合いを活かした、美しいプリントを実現
色々な素材に、風合いを活かした、美しいプリントを実現
色々な素材に、風合いを活かした、美しいプリントを実現
MPインク
  • Suitable for a
    variety of media
  • True-to-material
    finish
  • Withstands
    postprocessing
幅広いメディア対応力

Suitable for a variety of media

MP31 ink has the same weather and abrasion resistance as well as color development as eco-solvent ink. It can be used to print on a wide range of media, including not only eco-solvent media, but also printing paper, cardboard, flexible packaging, shrink film, and holographic sheets.

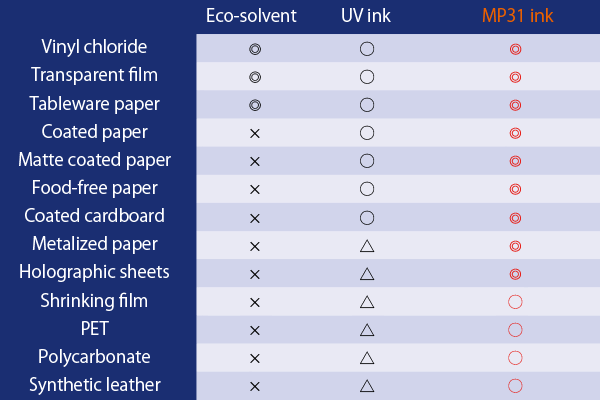

  • *The table shows an ink adhesion evaluation for each material. Performance may not be achieved depending on the application and printing conditions. Please perform testing in advance.
素材の風合いを活かした自然な仕上がり

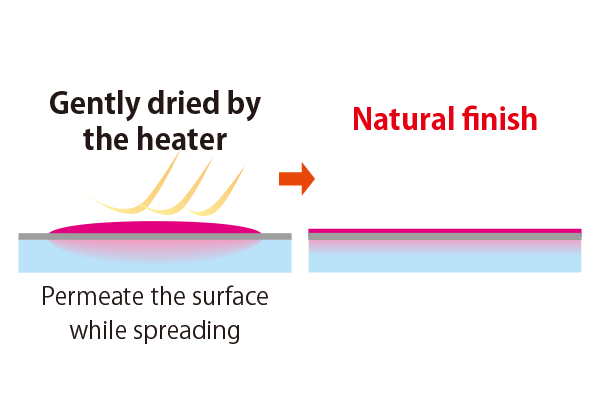

True-to-material finish

MP31 ink spreads evenly over the surface of the media and is fixed by low-temperature warm air, resulting in a natural finish with minimal unevenness. It also works well with surface treatments such as foil stamping and lamination.

優れた伸縮性で後加工に強い

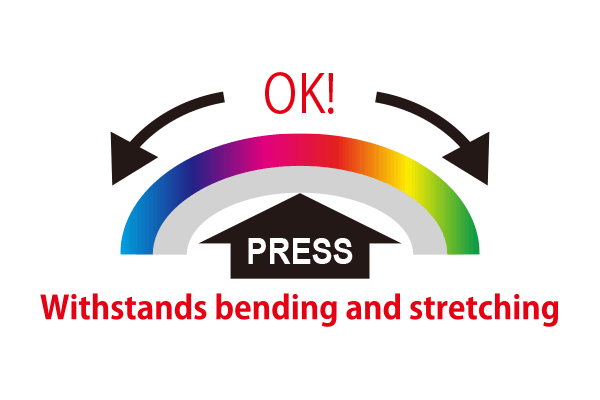

Withstands postprocessing

MP31 ink is resistant to bending and stretching and does not crack easily, making it suitable for processing paper packaging, vacuum forming, and shrink materials.

印刷後の色の変動が少ないので色校正用途にも最適

Minimal color variation after printing
Ideal for color proofing

While UV-curable inks tend to fluctuate in color for several hours after printing, MP31 ink shows minimal color variation after printing. Which makes it the ideal candidate for color proofing applications, where the color at the time of printing must remain stable when submitted to the client.

Intelligent Interweave

Intelligent
Interweave

Reduces banding and color irregularity.

Variable Dot Technology (3 dot types)

Variable Dot Technology
(3 dot types)

Allows for detailed color expression.

Ink circulation system

Ink circulation system

Equipped with a pump that periodically circulates ink, effectively preventing the pigment from settling and ensuring stable printing.

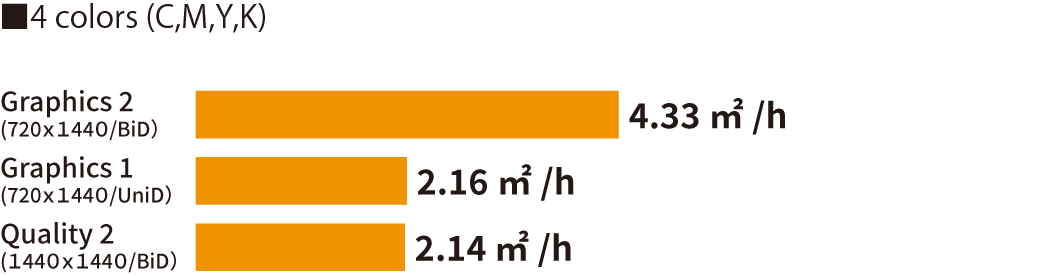

Productivity

生産性のグラフ
生産性のグラフ

Software

MUTOH Genuine RIP software VerteLith (option)

MUTOH Genuine RIP software VerteLith (option)

This RIP software boasts high image quality thanks to MUTOH’s proprietary technology MUTOH Clear Tone, a preview function that reduces printing errors, and a printing environment (preset function) that streamlines workflow.

MSM(MUTOH Status Monitor)

MSM(MUTOH Status Monitor)

Check printer status in real time.

SAi’s RIP software Flexi (option)

SAi’s RIP software Flexi (option)

RIP software for CMYKOrGrBl or CMYKOrGrBlWh ink configurations.

CGS’s color management RIP software ORIS FLEX PACK (option)

CGS’s color management RIP software ORIS FLEX PACK (option)

The combination of VJ-628MP and ORIS FLEX PACK creates a color proofing system for direct printing onto the substrate.

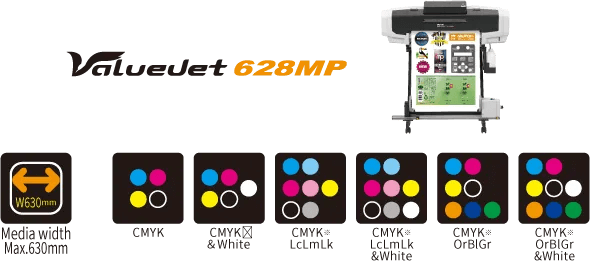

Product specifications

ValueJet-628MP
Item Specification Details
Printer model VJ-628MP
Print headPrint methodOn-demand piezo drive system
HeightLow: 1.2 mm, High: 2.5 mm
Number1
MediaRoll media widthMaximum: 630 mm
Max. thicknessLow: 0.3 mm, High: 1.3 mm
DiameterØ150 mm or less
Weight9 kg or less
Core diameter2 or 3 inches
Maximum printable width620 mm
InkTypeMP31 ink
Color 4 colors (C, M, Y, K)
5 colors (C, M, Y, K, Wh)
7 colors (C, M, Y, K, Lc, Lm, Lk or C, M, Y, K, Or, Gr, Bl)
8 colors (C, M, Y, K, Lc, Lm, Lk, Wh or C, M, Y, K, Or, Gr, Bl, Wh)
Capacity220 ml cartridge
InterfaceGb-Ethernet (1000BASE-T)
Power supply <Main, blower heater> Voltage: AC 100–120 V ±10 % / AC 200–240 V ±10 %
Frequency: 50/60 Hz ±1 Hz
Print environmentPrinter operationTemperature: 20–32 ℃, Humidity: 40–60 % RH (no condensation)
Accuracy guaranteedTemperature: 22–30 ℃, Humidity: 40–60 % RH (no condensation)
Power consumption Operation: 830 W or less, Blower heater: 350 W or less
Dimensions (W×D×H) 1,190 mm × 690 mm × 1,209 mm (printer body + stand)
WeightPrinter body: 37 kg, Stand: 10 kg
RIP software Genuine RIP software VerteLith* Or, Gr, Bl inks are not supported
  • *Specifications are subject to change without notice.

Optional items

Product name Model Details
Option IJ-RIP-01 Genuine RIP software VerteLith Or, Gr, Bl inks not supported
CGS ORIS FLEX PACK Color management RIP software Or, Gr, Bl inks supported
SAi Flexi Standard Edition RIP software Or, Gr, Bl inks supported
VJ06-TUP10 Take-up unit Take-up unit for 10 kg media with 1 power supply provided
VJ628-SR3 Scroller

Supplied items

Product name Model Details
MP31 ink MP31-CY220U Cyan (CY) 220 ml cartridge
MP31-MA220U Magenta (MA)
MP31-YE220U Yellow (YE)
MP31-BK220U Black (BL)
MP31-WH220U White (WH)
MP31-LC220U Light Cyan (LC)
MP31-LM220U Light Magenta (LM)
MP31-LK220U Light Black (LK)
MP31-OR220U Orange (OR)
MP31-GR220U Green (GR)
MP31-BL220U Blue (BL)
Cleaner MP31-CL220U Cleaner
MP31-CL1000BU Cleaner 1000 ml bottle
Supply VJ-CB Cutter blade replacement
RH2 Clean stick Cleaning stick
DROPPER 6 PACK SET Dropper 6 Pack Set 100 pieces
VJ1608-FB-SO20 Flushing pad 300 pieces
VJ-WIP Replacement cleaning wiper for VJ series
  • *Please purchase inks and cleaner separately.
