ValueJet 1628MH

MP INK

Stunning prints that bring out the original texture of various materials
Multi-purpose inkjet printer compatible with rigid and roll media

使いやすさと質感表現力にこだわったA2+ サイズ フラットベッドUV LED プリンター
使いやすさと質感表現力にこだわったA2+ サイズ フラットベッドUV LED プリンター
使いやすさと質感表現力にこだわったA2+ サイズ フラットベッドUV LED プリンター
使いやすさと質感表現力にこだわったA2+ サイズ フラットベッドUV LED プリンター
使いやすさと質感表現力にこだわったA2+ サイズ フラットベッドUV LED プリンター
使いやすさと質感表現力にこだわったA2+ サイズ フラットベッドUV LED プリンター
使いやすさと質感表現力にこだわったA2+ サイズ フラットベッドUV LED プリンター
使いやすさと質感表現力にこだわったA2+ サイズ フラットベッドUV LED プリンター
使いやすさと質感表現力にこだわったA2+ サイズ フラットベッドUV LED プリンター
使いやすさと質感表現力にこだわったA2+ サイズ フラットベッドUV LED プリンター
使いやすさと質感表現力にこだわったA2+ サイズ フラットベッドUV LED プリンター
使いやすさと質感表現力にこだわったA2+ サイズ フラットベッドUV LED プリンター
使いやすさと質感表現力にこだわったA2+ サイズ フラットベッドUV LED プリンター
使いやすさと質感表現力にこだわったA2+ サイズ フラットベッドUV LED プリンター
MPインク
  • Suitable for a
    variety of media
  • True-to-material
    finish
  • Withstands
    postprocessing
幅広いメディア対応力

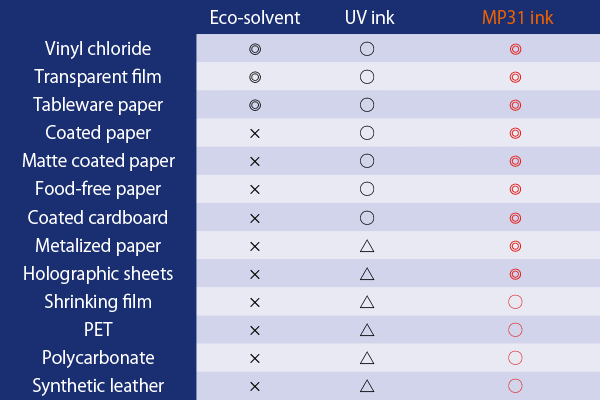

Suitable for a variety of media

MP31 ink has the same weather and abrasion resistance as well as color development as eco-solvent ink. It can be used to print on a wide range of media, including not only eco-solvent media, but also printing paper, cardboard, flexible packaging, shrink film, and holographic sheets.

  • ※The table shows an ink adhesion evaluation for each material. Performance may not be achieved depending on the application and printing conditions. Please perform testing in advance.
厚さ16mmまでのリジッドメディアに対応

Supports rigid media up to 16 mm thick

By using rubber rollers on the feeding table, stable feeding of rigid media is achieved. A built-in sensor automatically detects the height of the media in use, enabling printing at the optimal height. Optional accessories include a Rigid Media Feeding Table for feeding support and a Media Retainer for precise media positioning and front-side support.

ロールメディアにも対応

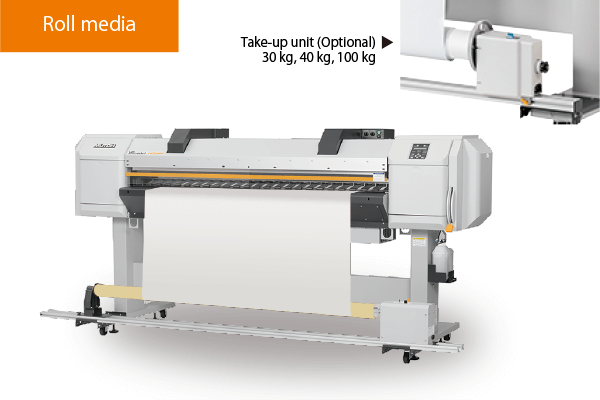

Supports roll media

We offer optional take-up units (30 kg, 40 kg, and 100 kg) that support stable feeding of roll media.

素材の風合いを活かした自然な仕上がり

True-to-material finish

MP31 ink spreads evenly over the surface of the media and is fixed by low-temperature warm air, resulting in a natural finish with minimal unevenness. It also works well with surface treatments such as foil stamping and lamination.

優れた伸縮性で後加工に強い

Withstands postprocessing

MP31 ink is resistant to bending and stretching and does not crack easily, making it suitable for processing paper packaging, vacuum forming, and shrink materials.

印刷後の色の変動が少ないので色校正用途にも最適

Minimal color variation after printing
Ideal for color proofing

While UV-curable inks tend to fluctuate in color for several hours after printing, MP31 ink shows minimal color variation after printing. Which makes it the ideal candidate for color proofing applications, where the color at the time of printing must remain stable when submitted to the client.

Intelligent Interweave

Intelligent
Interweave

Reduces banding and color irregularity.

Variable Dot Technology (3 dot types)

Variable Dot Technology
(3 dot types)

Allows for detailed color expression.

Ink circulation system

Ink circulation system

Equipped with a pump that periodically circulates ink, effectively preventing the pigment from settling and ensuring stable printing.

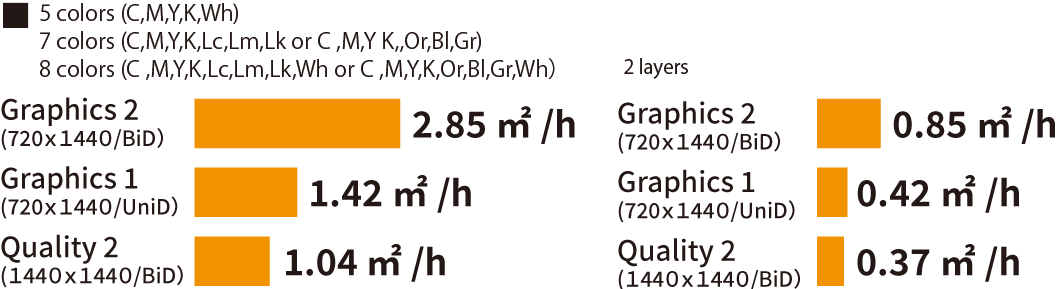

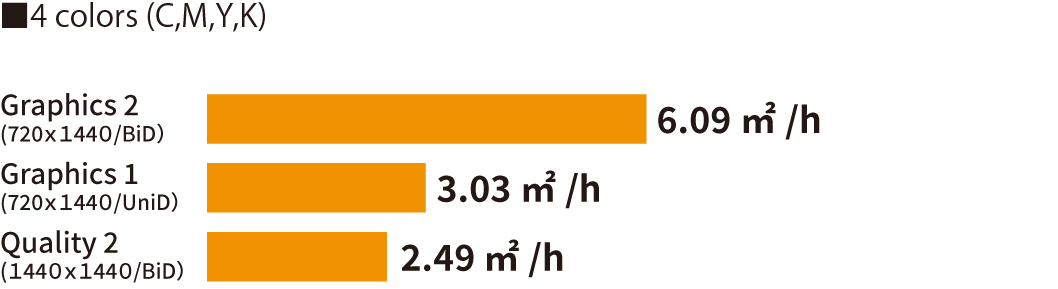

Productivity

生産性のグラフ
生産性のグラフ

Software

MUTOH Genuine RIP software VerteLith (option)

MUTOH Genuine RIP software VerteLith (option)

This RIP software boasts high image quality thanks to MUTOH’s proprietary technology MUTOH Clear Tone, a preview function that reduces printing errors, and a printing environment (preset function) that streamlines workflow.

MSM(MUTOH Status Monitor)

MSM(MUTOH Status Monitor)

Check printer status in real time.

SAi’s RIP software Flexi (option)

SAi’s RIP software Flexi (option)

RIP software for CMYKOrGrBl or CMYKOrGrBlWh ink configurations.

CGS’s color management RIP software ORIS FLEX PACK (option)

CGS’s color management RIP software ORIS FLEX PACK (option)

The combination of VJ-628MP and ORIS FLEX PACK creates a color proofing system for direct printing onto the substrate.

Product specifications

ValueJet-1628MH
Printer model VJ-1628MH
Print head Print method On-demand piezo drive system
Height Automatic adjustment
Number 1
Media Roll media width Maximum: 1,625 mm (roll and rigid media)
Max. thickness 16 mm
Diameter Ø150 mm or less (roll media)
Weight 15 kg or less (rigid media) / 30 kg or less (roll media)
Core diameter 2 or 3 inches (roll media)
Maximum printable width 1,615 mm (roll and rigid media)
Ink Type MP31 ink
Color 4 colors (C, M, Y, K)
5 colors (C, M, Y, K, W)
7 colors (C, M, Y, K, Lc, Lm, Lk or C, M, Y, K, Or, Gr, Bl)
8 colors (C, M, Y, K, Lc, Lm, Lk, W or C, M, Y, K, Or, Gr, Bl, W)
Capacity 220 ml cartridge (all colors) / 500 ml bag (C, M, Y, K, Wh)
* requires optional high capacity ink bag adapter
Interface Gb-Ethernet (1000BASE-T)
Power supply (main, blower heater) Voltage: AC 100–120 V ±10% / AC 200–240 V ±10% Frequency: 50/60 Hz ±1 Hz
Print environment Printer operation Temperature: 20–32 ℃ Humidity: 40–60 % RH, no condensation
Accuracy guaranteed Temperature: 22–30 ℃ Humidity: 40–60 % RH, no condensation
Power consumption Operation: AC100–120 V Main: 300 W or less / Blower heater 1: 1,000 W or less / Blower heater 2: 1,100 W or less
Ready to print: AC100–120 V Main: 40 W or less / Blower heater 1: 25 W or less / Blower heater 2: 0.4 W or less
Dimensions (W×D×H) 2,698 mm × 818 mm × 1,302 mm (printer body + stand)
1,190 mm × 2,730 mm × 1,209 mm (printer body + stand + media feeding table)
Weight Printer body: 168.6 kg / Stand: 33 kg
RIP software Genuine RIP software VerteLith * Or, Gr, Bl inks not supported
Included items
  • *Specifications are subject to change without notice.

Optional items

Product name Model Details
Option IJ-RIP-01 MUTOH Genuine RIP software VerteLith RIP software *Or, Gr, Bl inks not supported
CGS ORIS FLEX PACK Color management RIP software RIP software *Or, Gr, Bl inks supported
SAi Flexi RIP RIP software RIP software *Or, Gr, Bl inks supported
VJ-HCIPADPT High capacity ink bag adapter 4 pieces
VJ16/19-TUP30U Take-up unit (for media up to 30 kg) Power cable should be purchased separately
VJ16/19-TUP40U Take-up unit (for media up to 40 kg) Power cable should be purchased separately
VJ1617H-TBL Rigid media feeding table 2 sets required for operation
VJ1617H-RLR Media support Includes 1 additional roller for the feeding table
VJ16-MRT Media retainer Support unit for rigid media

Supplied items

Product name Model Details
MP31 ink MP31-CY500U Cyan (CY) 500 ml ink bag
MP31-MA500U Magenta (MA)
MP31-YE500U Yellow (YE)
MP31-BK500U Black (BK)
MP31-WH500U White (WH)
MP31-CY220U Cyan (CY) 220 ml cartridge
MP31-MA220U Magenta (MA)
MP31-YE220U Yellow (YE)
MP31-BK220U Black (BK)
MP31-WH220U White (WH)
MP31-LC220U Light Cyan (LC)
MP31-LM220U Light Magenta (LM)
MP31-LK220U Light Black (LK)
MP31-OR220U Orange (OR)
MP31-GR220U Green (GR)
MP31-BL220U Blue (BL)
Cleaner MP31-CL220U Cleaner
MP31-CL1000BU Cleaner 1000 ml bottle
VJ-HCIPAR VJ Adapter plug 20 pieces
RH2 Clean stick Cleaning stick 100 pieces
DROPPER 6 PACK SET Dropper 6 Pack Set 6 pieces
VJ1608-FB-SO20 Flushing pad 300 pieces
VJ-WIP VJ series replaceable wiper set 2 sets
  • *Please purchase inks and cleaner separately.
